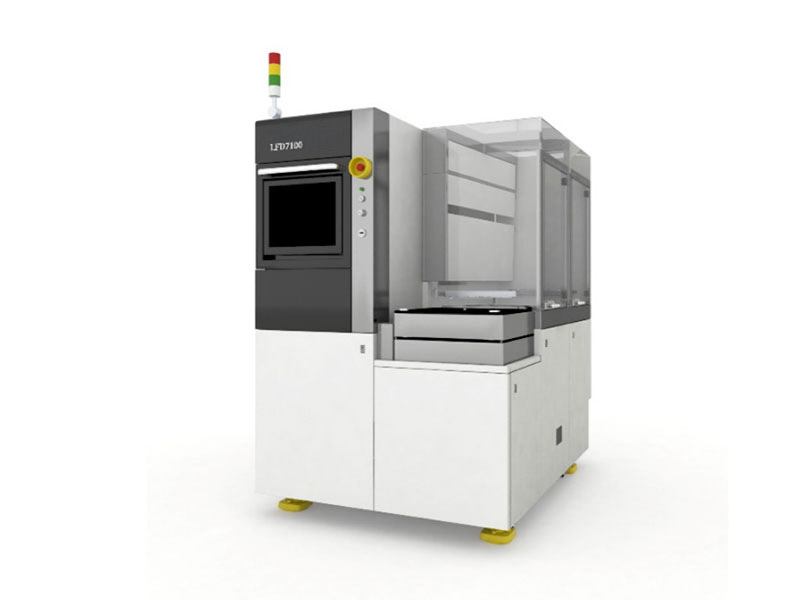

| 12 inch fully automatic cutting machine | |||||
| Equipment model | LFD7100 | ||||
| Workpiece size | φ300mm | ||||
| X axis | Cutting range | 310mm | Main shaft | Maximum power | 1.2kW/1.8kW |
| Cutting speed | 0.1~600mm/s | Torque | 0.2/0.3Nm | ||
| Y axis | Cutting range | 310mm | Rotational speed | 6000~60000rpm | |
| Minimum step distance | 0.0001mm | High magnification ratio | x10 | ||
| Single step positioning accuracy | ≤0.001mm/5mm | Image | High-power field | 0.71x0.66mm | |
| Full process positioning accuracy | 0.001mm/310mm | Low magnification ratio | x1.5 | ||
| Z axis | Stroke | 32mm | LPF | 4.7x4.4mm | |
| Resolution | <0.00005 | resolution | 2048×1920 | ||
| Repeatability | 0.001mm | Basic information | Equipment size | 1200×1550×1800mm | |
| θ axis | Corner range | -60~320° | Equipment weight | 约2050kg | |
